Cybersecurity Gateway
The secure bridge between production and modern IT
Connect your existing machines to modern IT systems such as MES or ERP with minimal effort.
OPC UA Server Retrofit
Retrofit existing machines with an OPC UA server - without any PLC changes. For secure data access or HMI retrofits.
MES Integration
Transfer jobs and recipes from your MES to your machine controller.
OEE & ERP Connectivity
Provide machine status and alarms for continuous OEE analysis in your ERP system.
Integrate Data Services
Provide data from online services to your machine, for example using weather data for intelligent control.

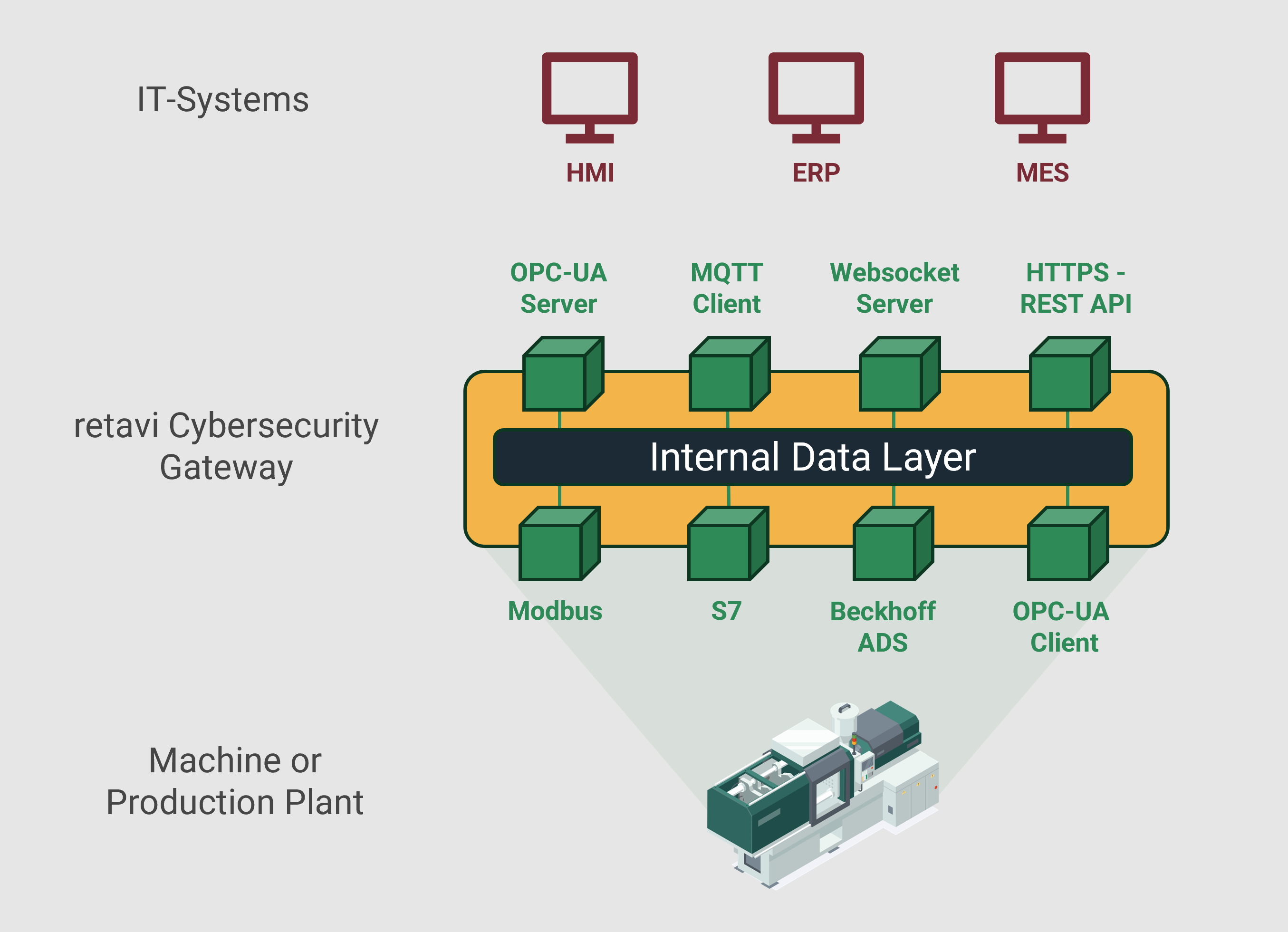

Architecture
Translate industrial communication into any IT protocol - and back again
Minimal effort and maximum security through turnkey communication modules and intuitive mapping tools. Bidirectional protocol translation with an integrated security layer.
Security by Design
Encrypted communication between field level and IT
Granular access control
Simple deployment and application of security updates
Compliant with the EU Cyber Resilience Act (CRA) - mandatory from 2027
How It Works
Example: Modbus / OPC UA Server Gateway

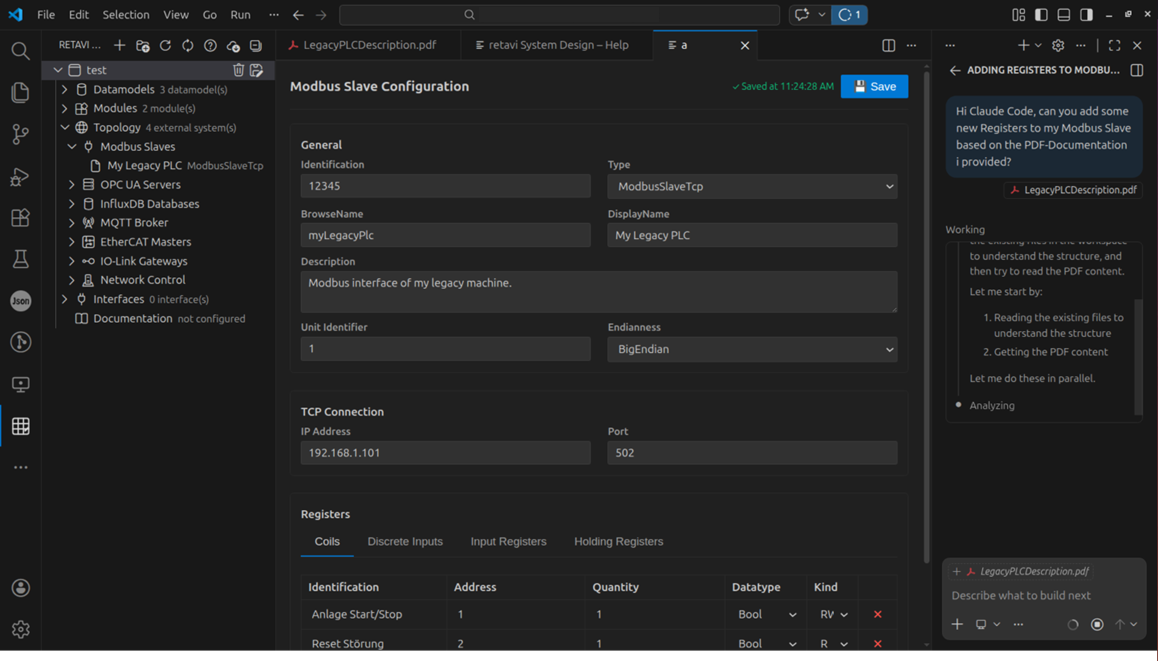

Connect Your Machine
Create a new Modbus slave by configuring the connection to your machine using the integrated web interface or our intuitive VS Code plugin. The Modbus slave is automatically scanned and mapped into the internal data model.

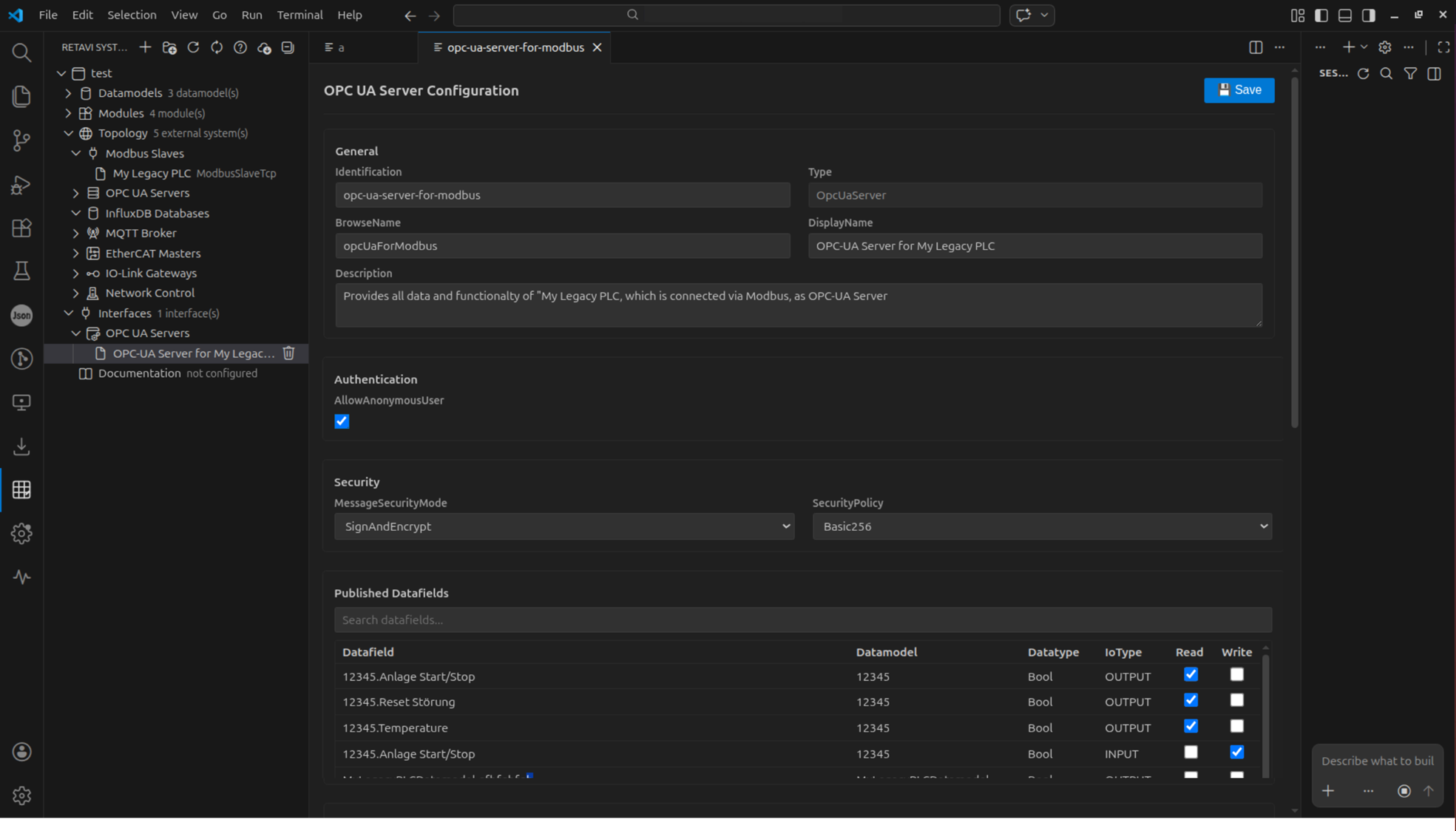

Configure the Translation Module
Select 'OPC UA Server' as the communication module. Define which data models from the data layer should be exposed through the OPC UA server.

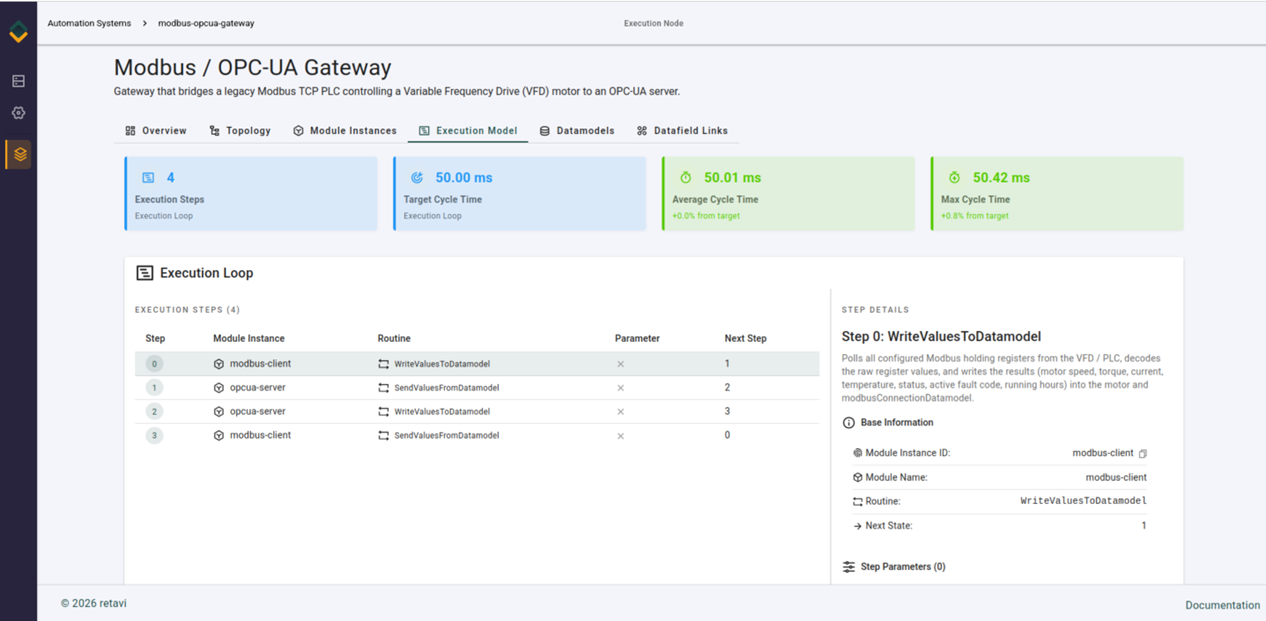

Operation
The gateway operates cyclically and state-based, similar to a traditional PLC. Cycle times of up to 20 ms are easily achievable on standard IT hardware, making even demanding real-time applications possible.
Choose a package and we will get back to you with a suitable offer as quickly as possible.
Hardware Package
Selected modules preinstalled on industrial-grade hardware - ready for immediate use.
from EUR 649
Software Package
Selected modules tailored to your use case. Delivered as a Docker container or executable.
from EUR 249
Enterprise Package
All available modules on the hardware of your choice - maximum flexibility for complex applications.
on request
Select hardware system
Pilz Industrial Pi 2
Industrial-grade Linux-based mini PC with preinstalled retavi software
ASUS NUC 14 Pro
Compact Linux-based mini PC with preinstalled retavi software
Other hardware
On request
Pilz IndustrialPI 4
Industrial-grade mini PC with preinstalled retavi software stack - certified for harsh industrial environments.
Technical Specifications
- 2 x USB-A 3.2 Gen 1
- 2 x RJ45 Gigabit Ethernet
- 1 x RS485
- 1 x Micro-USB socket
- 1 x Micro-HDMI 2.0a (4K)
- 2 x PiBridge
- 1 x RP-SMA for external WLAN/BT antenna (2.4 / 5 GHz)
Choose Your Modules
Plant Connectors
Communication Modules
